Thermal Printhead Bracket: What Does It Do and Why Do Some Printheads Have One?
Introduction
When purchasing a replacement thermal printhead, you may notice that some models come with a metal bracket or mounting plate, while others do not. Does this mean one printhead is more complete or better than the other?
Not necessarily.
The presence of a bracket is mainly related to the printer's mechanical design and the way the printhead is supplied. Understanding its function is important when selecting a compatible replacement printhead.
What Is a Thermal Printhead Bracket?
A thermal printhead bracket is a mechanical component used to support, position, and secure the printhead inside a printer.
Depending on the design, it may also function as:
* A mounting plate
* A structural support
* A heat-dissipation component
* A positioning reference
* Part of the pressure mechanism
The bracket helps maintain the correct relationship between the printhead, platen roller, ribbon, and printing media.
What Does a Printhead Bracket Do?
1. Provides Mechanical Support
The bracket keeps the printhead securely positioned during printing. Accurate positioning is essential because even a small deviation can affect contact with the platen roller and result in uneven print quality.
2. Helps Maintain Proper Pressure
Thermal printing requires consistent contact between the printhead and media. The bracket works together with springs, latches, or other printer mechanisms to maintain the correct position and pressure.
Incorrect positioning may cause:
* Uneven darkness
* Faded edges
* Missing dots
* Poor barcode quality
3. May Help With Heat Dissipation
Some metal mounting plates are also designed to transfer heat away from the printhead. However, **not every bracket is a heat sink**. Its thermal function depends on the specific printhead design.
4. Protects and Simplifies Installation
A complete printhead assembly with a bracket can make replacement faster and reduce the need to transfer components from the old printhead.

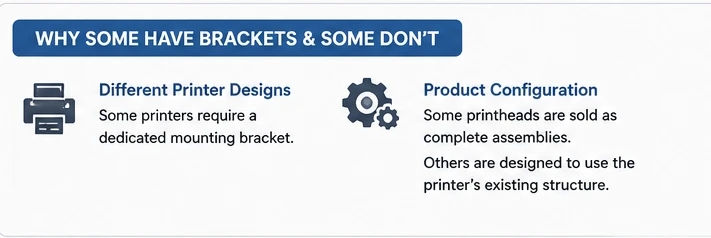

Why Do Some Printheads Have Brackets?
There are several common reasons:
Different printer designs:
Some printers require a dedicated mounting structure attached to the printhead.
Complete assembly configuration:
Some suppliers sell the printhead together with its original mounting plate, bracket, or heat sink.
Easy replacement:
A complete assembly allows technicians to replace the entire unit without transferring the old bracket.
Why Do Some Printheads Have No Bracket?
A printhead without a bracket is not necessarily incomplete.
In many printers, the **mounting structure is built directly into the printer mechanism**. The printer may already provide slots, latches, springs, positioning posts, or a mounting frame.
Other bare printheads are designed for professional repair or OEM applications, where the customer can reuse the original bracket or mounting structure.
Therefore:
No bracket does not automatically mean an incomplete printhead.
Are Printheads With and Without Brackets Compatible?
Not necessarily.
Bracket configuration alone cannot determine compatibility.
Before purchasing a replacement thermal printhead, check:
| Key Factor | What to Confirm |
| Printer Model | Exact model and version |
| Resolution | 203 / 300 / 600 dpi |
| Part Number | Original printhead P/N |
| Dimensions | Overall size and mounting position |
| Connector | Connector and cable configuration |
| Mounting | Holes, slots, posts, brackets |
| Printhead Pressure | Pressure and contact position |
| Heat Dissipation | Heat sink or printer-side structure |
Two printheads may look almost identical but still be incompatible because of differences in electrical interfaces, mounting dimensions, or heating-line position.
Physical fit does not always mean functional compatibility.
Is a Printhead With a Bracket Better?
Not necessarily.
A bracket does not automatically mean:
* Better print quality
* Longer service life
* Higher quality
* Better compatibility
The most important question is whether the printhead matches the mechanical, electrical, and thermal requirements of the target printer.
In simple terms:
Bracket present ≠ better printhead
Bracket absent ≠ incomplete printhead
Conclusion
A thermal printhead bracket is an important part of the printer's mechanical interface. Depending on the design, it can provide support, positioning, pressure control, structural reinforcement, and sometimes heat dissipation.
Some printheads are supplied with brackets because they are sold as complete assemblies, while others are designed to work with the printer's existing mounting structure.
When selecting a replacement printhead, do not judge compatibility simply by whether a bracket is included. Always verify the printer model, printhead part number, DPI, dimensions, connector, mounting structure, and pressure mechanism.
If you need help identifying a replacement thermal printhead, provide the printer model, original part number, or photos of the printhead and mounting structure. Codewel can help you evaluate the compatibility.
